Gas fire flue

From the gas fire two nested pipes go out. A Pipe for the burned gases, which needs to be hermetically conducted to the flue end and a oxigen pipe, which needs to be hermetically conducted to a place where it can draw fresh air.

The chimney load must be absorbed by wall mounting brackets. These are recommended every 2m. The gas fireplace must not be subjected to static load. This must be ensured by other measures, if necessary, if brackets are not feasible.

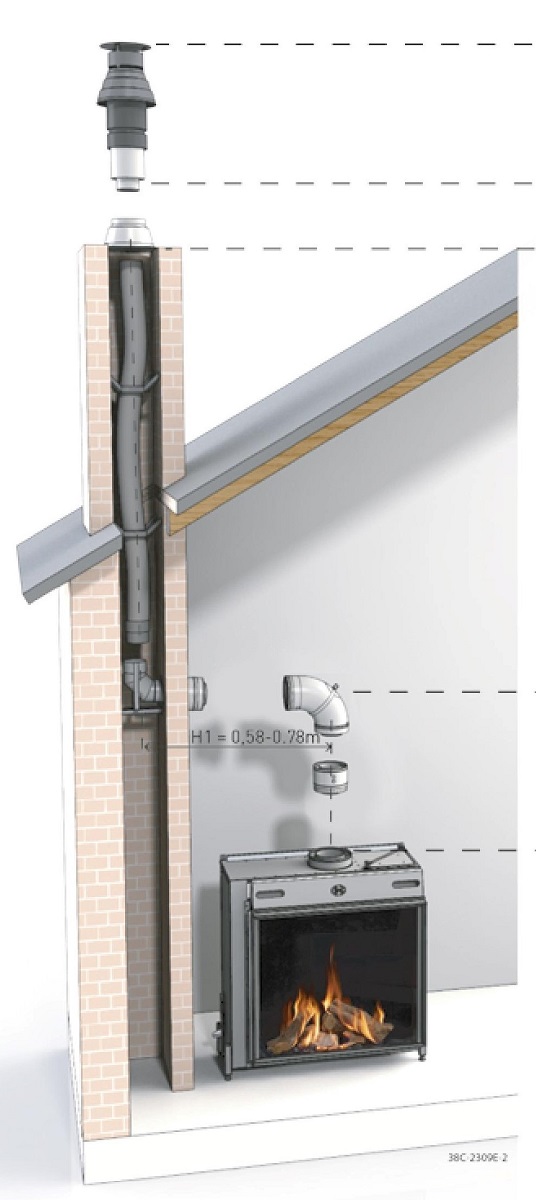

Flex flue pipe through chimney



The oxigen and the burned gases are conducted from the gas fire to the chimney enter by corners, pipes and a chimney connection. The oxigen pipe reaches the chimney and can draw fresh air from there, whithout consuming any air from inside. In the chimney the path of the burned gases continues from the chimney connection to the end of the chimney through a flex pipe and the flue can be completed with a chimney top. The burned gases pipe needs to be hermetically sealed inorder not to have burned gas leaks inside the chimney or home.

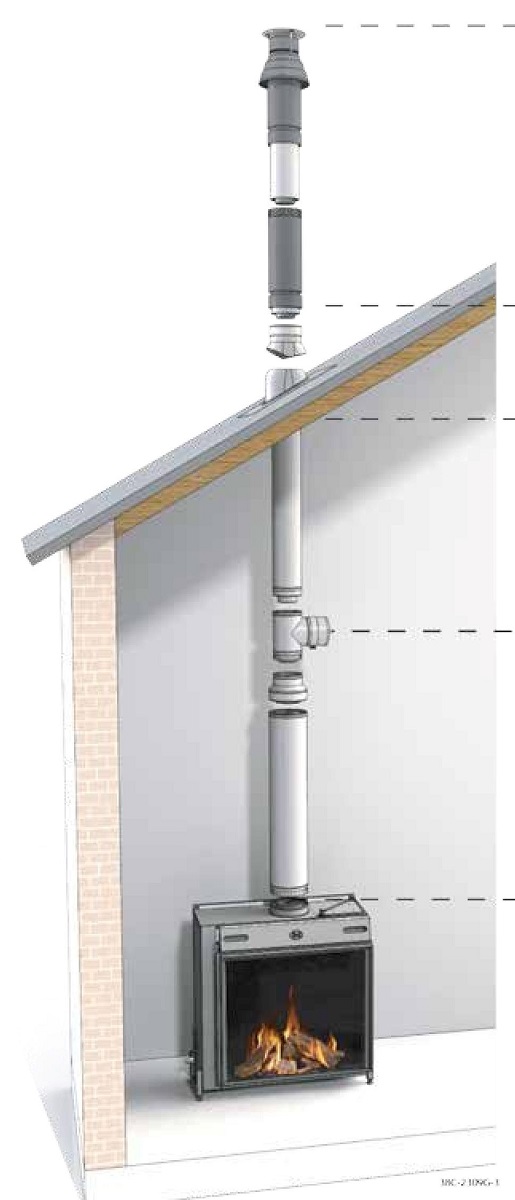

Flue through roof



Can be implemented by pipes and roof terminal. The flue draws fresh air and takes the burned gases outside.

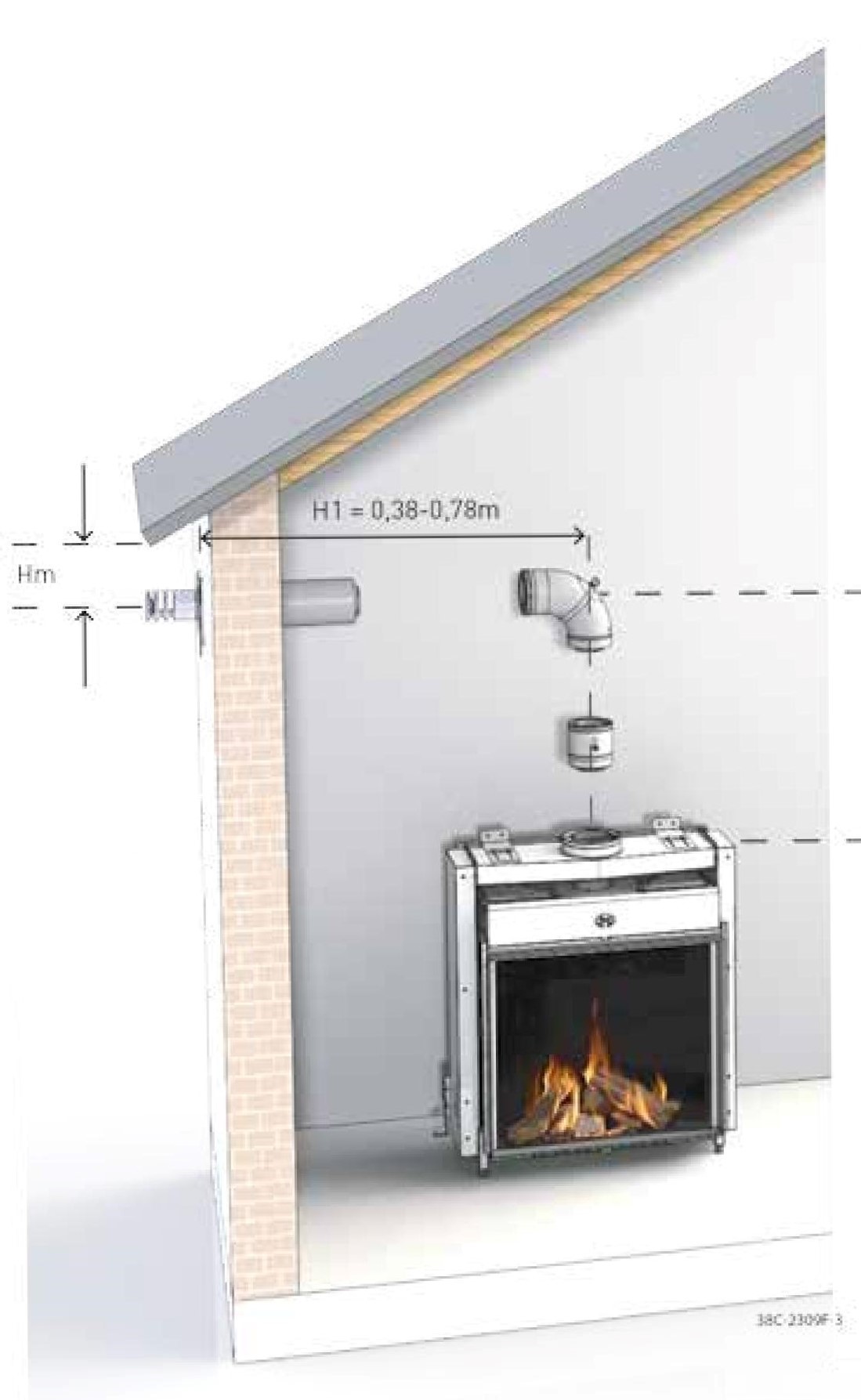

Flue through wall

Easy and convenient way for gas flue. Implemented by corner, pipe and wall terminal.
